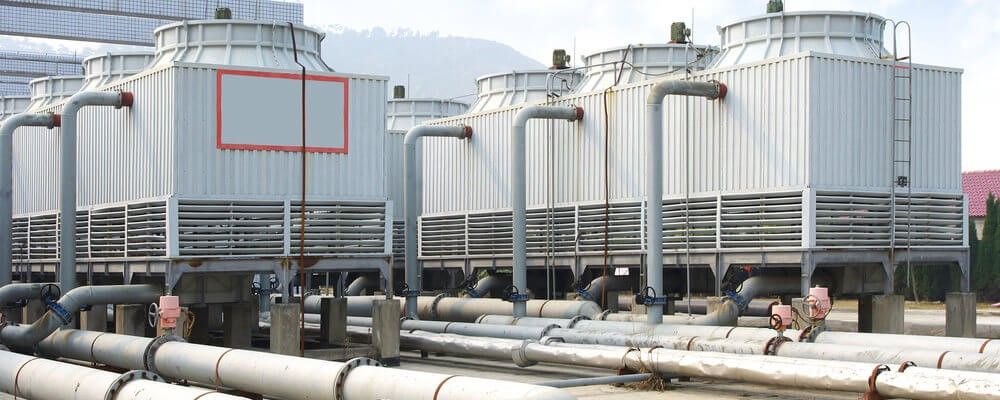

Cooling tower in a water-cooled chiller system is a critical heat rejection unit that ensures the chiller plant operates at optimum efficiency. While water-cooled chillers remove heat from the chilled water loop, that heat needs to be expelled from the system. This is where the cooling tower comes into play — it removes heat from the condenser water loop and releases it into the atmosphere through evaporative cooling.
In high-capacity commercial buildings, hospitals, data centers, and process industries, water-cooled chiller systems are preferred for their energy efficiency and performance stability over air-cooled systems — but this is only achievable when the cooling tower is well-engineered and properly maintained.
How a Cooling Tower Works Within a Water-Cooled Chiller Setup
Water-cooled chillers generate chilled water, which absorbs heat from buildings or industrial processes. This heat is then transferred to the refrigerant, which carries it to the condenser. The condenser water loop, connected to a cooling tower, absorbs this heat and transports it to the cooling tower for final rejection.
Step-by-Step Flow:
- Heat Absorption in Chiller Evaporator:
- Chilled water removes heat from a building/process and carries it to the chiller’s evaporator.
- The refrigerant inside absorbs this heat and evaporates.
- Condenser Transfers Heat to Water:
- The hot refrigerant passes through the condenser.
- Heat is transferred to water flowing through condenser tubes.
- Hot Condenser Water to Cooling Tower:
- This now-warm water (often around 32–37°C) moves to the cooling tower.
- Evaporative Heat Rejection:
- In the cooling tower, water is sprayed over fill media.
- A fan blows ambient air through this falling water, causing partial evaporation.
- This evaporation absorbs heat and cools the remaining water.
- Return of Cooled Water to Chiller:
- The cooled water (typically 27–29°C) is collected and returned to the chiller to absorb more heat.
Main Components of Cooling Tower
Fill Media
- Increases the contact surface between water and air.
- Film fill spreads water into a thin sheet to enhance heat transfer.
- Splash fill breaks water into droplets, increasing surface area and oxygen exposure.
Drift Eliminators
- Prevent water droplets from leaving the tower with air.
- Essential for water conservation and reducing chemical loss.
- Helps comply with regulations limiting water vapor emissions.
Fans
- Force or draw air through the tower.
- Axial fans are energy-efficient and used in low-pressure applications.
- Centrifugal fans provide high static pressure, ideal for enclosed or noise-sensitive areas.
Spray Nozzles
- Distribute water uniformly over fill media.
- Help maintain consistent temperature and maximize evaporation.
- Anti-clog designs are preferred for dirty water applications.
Cold Water Basin
- Located at the base, collects cooled water after it has passed through the fill.
- Typically includes strainers, float valves, and sump pumps.
Air Inlet Louvers
- Allow air to enter while blocking debris, sunlight, and splashing.
- Reduce algae growth and enhance tower cleanliness.
Key Components of the Cooling Tower
The fill media is where most of the heat transfer occurs. It dramatically increases the surface area available for water and air to interact. There are two types: film fill, which spreads the water into thin sheets, and splash fill, which breaks the water into small droplets. Both types maximize evaporation and cooling.
Drift eliminators are important to prevent water droplets from escaping the cooling tower with the air exhaust. Without them, significant water loss and environmental impact can occur. High-efficiency drift eliminators reduce water loss to almost negligible levels.
Cooling tower fans are responsible for moving air through the system. Axial fans are more energy-efficient and are typically used for large volumes with low resistance. Centrifugal fans are used when higher static pressure is needed, such as in enclosed systems or sound-sensitive environments.
Spray nozzles distribute the hot water evenly over the fill media. Uniform distribution ensures maximum exposure to air and optimal cooling. They are often designed to resist clogging from particulate matter or scale in the water.
Modern Enhancements and Innovations
Advanced cooling towers now incorporate smart sensors and controls for real-time performance monitoring. These include temperature sensors, flow meters, vibration detection on fans, and water quality analyzers. Integration with building management systems (BMS) allows predictive maintenance and automated optimization.
Noise control is another modern enhancement. Acoustic louvers, variable speed fans, and tower enclosures reduce operational noise, making cooling towers more suitable for urban or sound-sensitive installations.
Modular cooling towers are now common, especially for high-density buildings. These pre-engineered modules can be quickly installed, expanded, or replaced, offering design flexibility and reducing downtime.
Free cooling integration is also on the rise. When outdoor temperatures are low enough, the system can bypass the chiller altogether and use the cooling tower directly to provide chilled water, reducing operational costs significantly in winter months.
Cooling tower in a water-cooled chiller system is the engine of heat rejection, ensuring that the thermal energy extracted by the chiller is effectively removed from the system. Without this vital component, chillers would not be able to operate efficiently, and energy consumption would soar. Cooling towers enable lower condenser pressures, reduce compressor loads, and extend the overall system lifespan.
As the HVAC and industrial world moves toward energy efficiency and intelligent automation, cooling towers are evolving too — with smarter designs, integrated controls, better drift and noise management, and sustainable configurations like hybrid and closed-loop systems. Mastering the function and optimization of a cooling tower means not just managing temperature, but also managing cost, reliability, and environmental performance.
