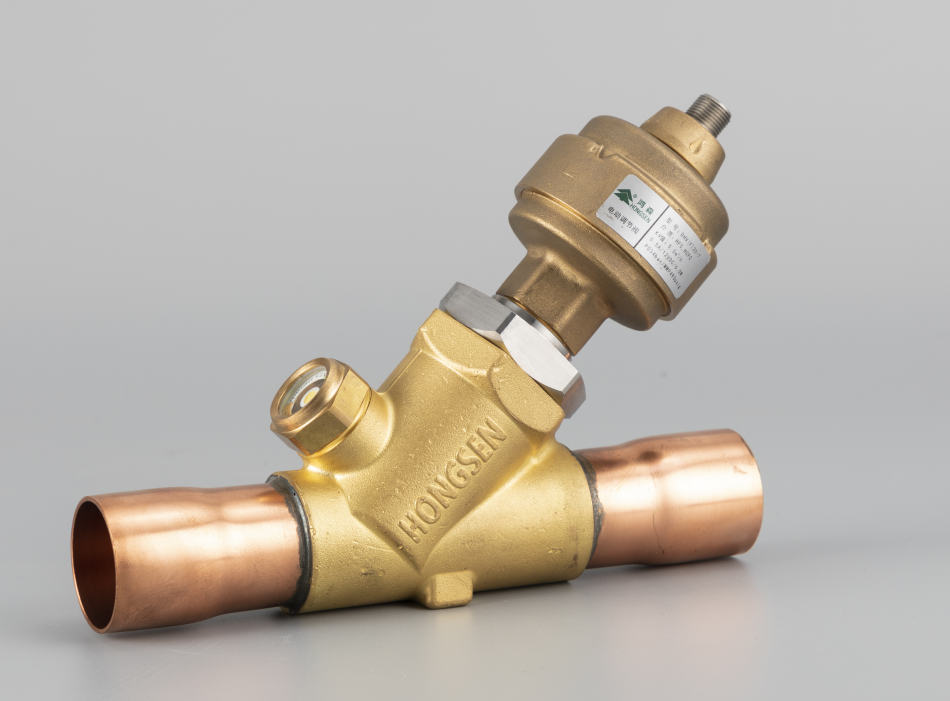

Expansion valves in variable speed chiller systems are not just components—they are intelligent flow regulators that ensure efficient, stable, and adaptive cooling. As variable speed chillers dynamically adjust their compressor speeds based on fluctuating load demands, the expansion valve must work in perfect sync to modulate refrigerant flow with precision. This shift from traditional thermostatic valves to advanced electronic expansion valves (EEVs) has transformed the way chillers respond to real-time conditions, reduce energy consumption, and improve overall system performance. In this article, we explore how these valves operate, why they’re crucial in modern chiller design, and the unique innovations that make them indispensable in smart HVAC and industrial cooling systems.
Real-Time Refrigerant Flow Management
In a traditional fixed-speed chiller, the compressor works at a constant pace, making refrigerant flow demands relatively stable. However, in variable speed chillers, the compressor constantly ramps up and down based on load. This variability places a critical responsibility on the expansion valve to adjust refrigerant flow in real time — like a smart traffic controller that opens or closes lanes instantly based on traffic.
- Why it matters: Overfeeding refrigerant can flood the evaporator, while underfeeding can starve it, causing inefficient cooling and even compressor damage.
- Advanced EEVs can make multiple fine adjustments per second, ensuring the evaporator always receives just the right amount of refrigerant.
Digital Feedback Loops with Compressor RPM
Modern variable speed chillers don’t operate in silos. The compressor RPM, refrigerant pressure, suction temperature, and superheat are constantly monitored and fed back into the expansion valve controller.
- When the compressor speed increases rapidly, it means the system is calling for more cooling.
- The expansion valve gets this signal and preemptively increases its opening to let more refrigerant flow.
- Result: Reduced lag, no hunting, and more stable evaporator temperatures.
This anticipatory control differentiates intelligent chillers from traditional reactive systems.
Self-Tuning Algorithms for Superheat Control
Superheat is the temperature difference between the refrigerant vapor exiting the evaporator and its saturation temperature. Keeping this value precise is vital for protecting the compressor and maintaining efficiency.
Traditional systems use static PID (Proportional-Integral-Derivative) loops. But in variable speed chillers, dynamic or self-tuning algorithms are used, which:
- Learn system behavior over time.
- Adjust how aggressively the valve opens/closes.
- Eliminate superheat hunting (unstable temperatures and pressures).
Some advanced chillers even integrate AI logic that analyzes historical trends to predict what the superheat should be under given conditions.
Micro-Stepper Motors for Extreme Precision
Modern EEVs use micro-stepper motors that offer fine-grain control over valve position. These motors can:
- Make thousands of steps in one full revolution.
- Open or close the valve by tiny percentages (as small as 0.1% increments).
This is especially useful in:
- Low-load conditions, where minute refrigerant adjustments make a big difference.
- Systems with low evaporator temperature differentials, such as process chillers or precision cooling.
Fail-Safe Mechanisms Using Capacitor Backup
In mission-critical environments like hospitals, pharmaceuticals, or data centers, a power or control failure could destroy equipment if the expansion valve gets stuck open or closed.
New-generation EEVs are equipped with:
- Capacitor-based energy storage to close the valve to a safe position during a power outage.
- Built-in logic to move to a pre-programmed “fail-safe” position to avoid flooding or starvation.
This design adds redundancy and peace of mind in sensitive cooling applications.
Dynamic Superheat Setpoint Shifting
In intelligent HVAC systems, superheat is no longer a fixed number. Controllers shift the superheat target dynamically based on:
- Outdoor ambient temperature (higher on hot days, lower at night).
- Return chilled water temperature (e.g., during partial occupancy).
- Cooling efficiency goals (e.g., chillers operating in energy-saving mode during off-peak hours).
Expansion valves now operate under changing targets, enhancing system flexibility and efficiency.
Expansion valves in variable speed chiller applications are at the heart of adaptive cooling efficiency. Their ability to intelligently manage refrigerant flow—based on compressor speed, thermal load, and system pressure—ensures optimal superheat control, reduces energy wastage, and enhances equipment longevity. As chillers become smarter and more connected, expansion valves must also evolve, incorporating predictive algorithms, IoT capabilities, and dynamic control strategies. From pharmaceutical labs to data centers and green buildings, the performance of a variable speed chiller is only as good as the responsiveness of its expansion valve. Investing in the right valve technology is no longer optional—it’s essential for future-ready HVAC systems.
