Refrigeration Cycle Chillers

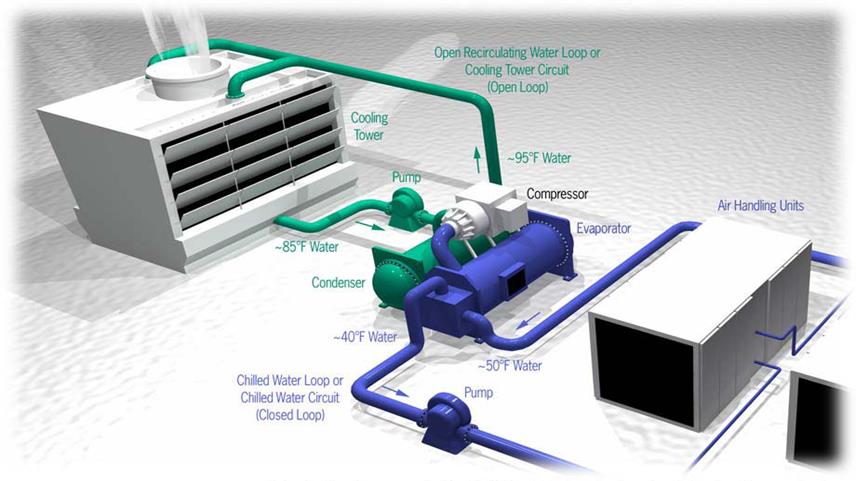

Refrigeration Cycle Chillers is the backbone of modern cooling technology, playing a vital role in maintaining controlled temperatures across various industries.
Heat Exchangers

Introduction

Refrigeration Cycle Chillers is a fundamental cooling process widely used in commercial buildings, industrial plants, medical facilities, and data centers to regulate temperatures efficiently. Chillers operate based on thermodynamic principles, utilizing a refrigerant to absorb and transfer heat from one area to another. This process ensures precise cooling and temperature control in various applications, from HVAC systems to specialized industrial cooling needs. The refrigeration cycle consists of four main stages: compression, condensation, expansion, and evaporation. Each stage plays a crucial role in maintaining efficient heat transfer and cooling performance. The cycle works by compressing a refrigerant gas, releasing heat through a condenser, expanding the refrigerant to reduce its temperature, and then absorbing heat from the surroundings in the evaporator. This continuous cycle allows chillers to provide reliable cooling for air conditioning, manufacturing processes, medical equipment, and food storage. With advancements in technology and refrigerants, modern chillers are designed to be energy-efficient, eco-friendly, and adaptable to diverse applications. Understanding the refrigeration cycle helps in optimizing system performance, reducing energy consumption, and ensuring the longevity of cooling equipment.

Stages of the Refrigeration Cycle Chillers

Compression Stage

  • The cycle starts with the compressor, which compresses the low-pressure, low-temperature refrigerant gas.
  • This compression process increases the pressure and temperature of the refrigerant, converting it into a high-pressure, high-temperature gas.
  • The compressor is the heart of the system, as it ensures refrigerant flow through the entire cycle.
  • Types of compressors used in chillers:
    • Reciprocating Compressors – Used in small to medium-sized chillers.
    • Scroll Compressors – Common in commercial air conditioning and chillers.
    • Screw Compressors – Ideal for large-scale industrial applications.
    • Centrifugal Compressors – Used in large-capacity chillers.

Condensation Stage

  • The high-pressure gas from the compressor enters the condenser, where it releases heat.
  • Heat is transferred from the refrigerant to an external medium, such as air or water, depending on the type of chiller.
  • The refrigerant undergoes phase change, turning into a high-pressure liquid.
  • Types of condensers used in chillers:
    • Air-Cooled Condenser – Uses ambient air to remove heat from the refrigerant.
    • Water-Cooled Condenser – Uses water from a cooling tower or other sources to remove heat.

Expansion Stage

  • The high-pressure liquid refrigerant flows into the expansion valve, which reduces its pressure.
  • The pressure drop causes the refrigerant to cool significantly before entering the evaporator.
  • The refrigerant now exists as a low-pressure, low-temperature liquid.
  • Types of expansion valves:
    • Thermostatic Expansion Valve (TXV) – Automatically adjusts refrigerant flow based on temperature.
    • Electronic Expansion Valve (EEV) – Provides precise refrigerant flow control.
    • Capillary Tube – A simple and cost-effective method used in small chillers.

Evaporation Stage

  • The cooled, low-pressure refrigerant enters the evaporator, where it absorbs heat from the surroundings (air, water, or process fluid).
  • The refrigerant evaporates into a low-pressure gas, completing the cycle.
  • The cooled fluid is then circulated for air conditioning, industrial cooling, or other applications.
  • The refrigerant gas returns to the compressor, and the cycle repeats.

Types of Refrigeration Cycles Chillers

Vapor Compression Cycle

  • The most common refrigeration cycle used in chillers.
  • Uses a mechanical compressor to drive the refrigeration process.
  • Efficient and widely used in HVAC systems, industrial cooling, and process chillers.
  • Commonly uses R-134a, R-410A, or R-32 refrigerants.

Absorption Refrigeration Cycle

  • Uses heat energy instead of a mechanical compressor.
  • Works with water-lithium bromide (LiBr) or ammonia-water (NH3-H2O) refrigerants.
  • Often used in large-scale industrial applications, such as power plants and commercial buildings.
  • Can operate using waste heat, solar energy, or steam for improved efficiency.

Applications of Refrigeration Cycle Chillers

HVAC and Air Conditioning

  • Used in commercial buildings, shopping malls, hotels, and office complexes.
  • Ensures comfortable indoor air quality by maintaining cooling temperatures.

Industrial Cooling

  • Used in plastic manufacturing, chemical processing, metal industries, and food processing plants.
  • Provides precise temperature control for machines and products.

Medical and Pharmaceutical Cooling

  • Used in MRI machines, CT scanners, vaccine storage, and laboratory equipment.
  • Essential for maintaining controlled environments for sensitive medical products.

Data Centers and IT Cooling

  • Used in server rooms and data centers to prevent overheating of IT equipment.
  • Ensures reliable performance of computers and networking systems.

Food and Beverage Industry

  • Used in cold storage warehouses, breweries, dairy processing, and frozen food production.
  • Maintains optimal temperatures for food preservation.

Power Plants and Energy Sector

  • Used for cooling turbines, generators, and power electronics.
  • Helps improve efficiency and lifespan of energy systems.

Advantages of Refrigeration Cycle Chillers

Highly Efficient Cooling – Provides consistent and reliable cooling for various applications.
Energy Savings – Modern chillers use advanced compressors and refrigerants for energy efficiency.
Scalable Technology – Can be designed for small, medium, or large-scale cooling needs.
Environmental Benefits – Newer systems use low-GWP (Global Warming Potential) refrigerants.
Versatile Use Cases – Supports HVAC, industrial, medical, food processing, and IT applications.
Durability and Longevity – Proper maintenance extends chiller lifespan to 15-25 years.

Conclusion

Refrigeration Cycle Chillers is the backbone of modern cooling technology, playing a vital role in maintaining controlled temperatures across various industries. By leveraging the principles of heat absorption and dissipation, chillers ensure optimal cooling efficiency, energy savings, and environmental sustainability. As industries move towards greener and more energy-efficient solutions, the refrigeration cycle continues to evolve with advanced compressor designs, eco-friendly refrigerants, and intelligent control systems. Proper maintenance, periodic inspections, and the use of energy-efficient chillers contribute to lower operational costs and enhanced system longevity. Whether used in HVAC systems, industrial processing, medical cooling, or data center applications, chillers remain an indispensable solution for temperature regulation. The future of refrigeration technology promises greater efficiency, reduced carbon footprint, and innovative cooling solutions that will continue to shape the industry for years to come.
