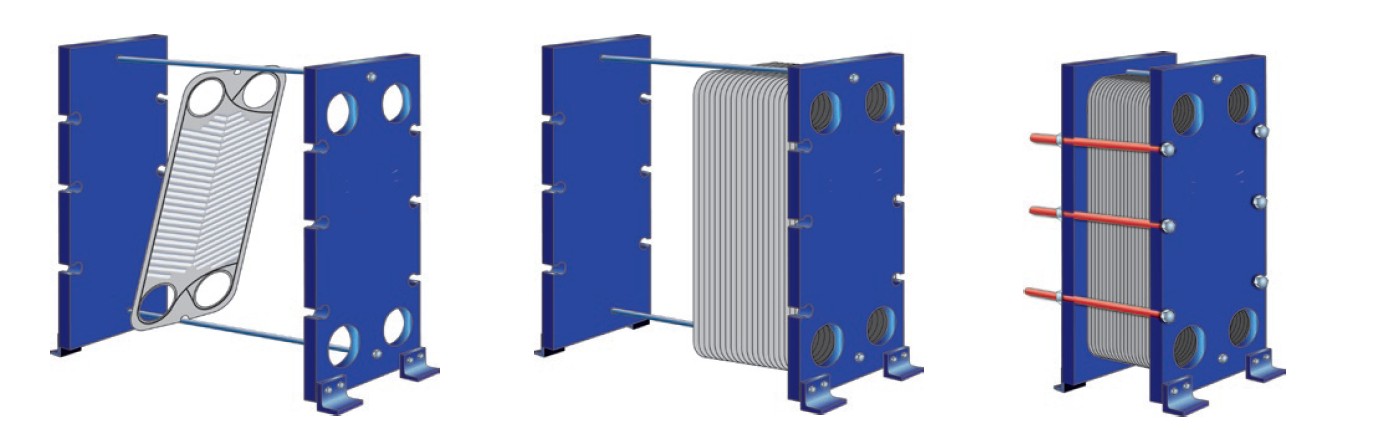

The frame and pressure plates are critical components in a Gasketed Plate Heat Exchanger (GPHE), providing the structural integrity needed to keep the plate pack securely clamped and properly sealed during operation. While the plates and gaskets handle the actual heat transfer, it is the frame and pressure plates that hold everything together and ensure consistent performance under high pressure and temperature variations. A typical GPHE consists of a fixed frame plate and a movable pressure plate, which are connected by strong tie bolts. This arrangement not only maintains the tightness of the unit but also allows for easy disassembly during inspection, cleaning, or gasket replacement.
The fixed frame plate is the stationary part of the unit that supports the plate pack and provides the inlet and outlet connections for fluid flow. On the other hand, the movable pressure plate can slide along the carrying bar when the tie bolts are loosened, making it possible to open the heat exchanger for maintenance. This design is highly practical in industries where regular cleaning or gasket changes are required, such as food processing, pharmaceuticals, chemical plants, and HVAC systems. The ability to adjust the number of plates by moving the pressure plate also makes GPHEs flexible in handling varying process requirements.
The frame and pressure plates are usually made of carbon steel or stainless steel, chosen for their durability and resistance to corrosion. They are engineered to withstand significant mechanical stress, ensuring that the gaskets maintain their sealing function even under high-pressure conditions. The precision tightening of the tie bolts between the frame and pressure plate is essential, as uneven compression can lead to leaks or reduced thermal performance. Regular inspection of the frame for wear, corrosion, or deformation is equally important to extend the operational life of the heat exchanger.
By ensuring the frame and pressure plates are well maintained, industries can enhance the reliability, efficiency, and safety of their gasketed plate heat exchangers. Together with gaskets and heat transfer plates, they form the backbone of the GPHE system, delivering consistent performance and easy maintenance for a wide range of industrial applications.
